Specification:
| Basic Information | ||
| Supported CPU | Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
|
| Chipset | Intel® B250 Express Chipset | |
| BIOS | 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
|
| Graphics Slot | D-Sub DVI-D |
|
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x DDR4 DIMM sockets | |
| Supported Memory | Support for DDR4 2400* / 2133 MHz memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. |
|
| Maximum Mamory | 32 GB | |
| Graphics | ||
| Integrated Graphics | Integrated Graphics Processor-Intel® HD Graphics | |
| Supported Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz 1 x DVI-D port, supporting a maximum resolution of 1920×[email protected] Hz * The DVI-D port does not support D-Sub connection by adapter. |
|
| Max Shared Memory | 1 GB | |
| Connector & Ports | ||
| USB (s) | Chipset: 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | Chipset: 6 x SATA 6Gb/s connectors |
|
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper |
|
| D-Sub (s) | 1 x D-Sub | |
| DVI-D (s) | 1 x DVI-D port | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Description :

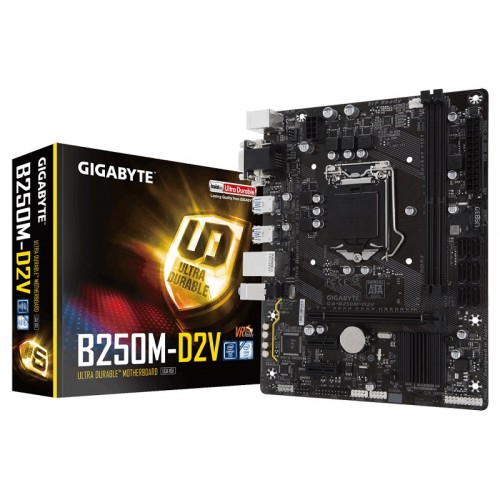

Gigabyte GA-B250M-D2V Micro ATX ultra durable motherboard has the compatibility with 7th/6th i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920×[email protected] Hz for DVI-D & D-Sub port. This latest motherboard has the facility of High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting, GbE LAN with cFosSpeed Internet Accelerator Software and Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers. GIGABYTE UEFI BIOS board also contain PP Center Including Cloud Station™ Utility.
