Description
Specification:
| Motherboard | ||
| Chipset | Intel G31 chipset | |
| Supported Processors | Supports Intel Pentium 4/Pentium D/CoreTM2Duo/ Pentium Dual-Core E2XXX or Celeron4XXX/Wolfdale CPU |
|
| Max Memory | DDR2 533/667/800 SDRAM(4GB Max) 2 DDR2 DIMMs (240Pin/1.8V) |
|
| Onboard Audio | Chip integrated by Realtek ALC662, supports 5.1-channel audio-out Vista Premium compliance |
|
| Onboard LAN | Supports Realtek RTL8100C or RTL8103EL 10/100MB/S |
|
Description :

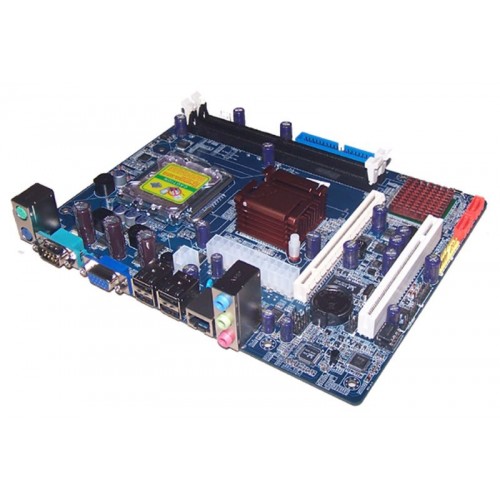

Esonic G31 DDR2 motherboard
- CPU Supports IntelPentium 4/Pentium D/CoreTM2Duo/ Pentium Dual-Core E2XXX or Celeron4XXX/WolfdaleCPU
- FSB 533/800/1066/1333MHZ
- Chipset NorthBridge: Intel G31 chipset South Bridge: Intel ICH7 chipset
- Memory DDR2533/667/800 SDRAM(4GB Max)2 DDR2 DIMMs (240Pin/1.8V)
- LAN Supports Realtek RTL8100C or RTL8103EL 10/100MB/S
- Audio Chipintegrated by Realtek ALC662,supports 5.1-channel audio-out Vista Premium
- compliance
- IDE PortSupports Ultra DMA 66/100 mode, Supports PIO,Bus Master operation mode STAT Supports,2 SATA devices
- Parellel port supporting SPP/EPP/ECP mode
- 1 PS/2 mouse port 1 PS/2 Keyboard port
- 1 serial port(COM1) 1 VGA port
- 4 USB 2.0 ports 1 RJ-45 LAN jack 3 flexible
- audio jacks
- On-Board Pinheaders/Connectors 1
- USB 2.0 Pinheader 1 CD-In connector
- 1 Front Panel Audio Pinheader
- Slots 1
- PCI Express x16 slot
- 1 PCI slots(Support 3.3V/5V PCI bus interface)
- Form Factor Micro-ATX (21cm X 16.8 cm)
- Mounting 6mounting holes
