Sale!

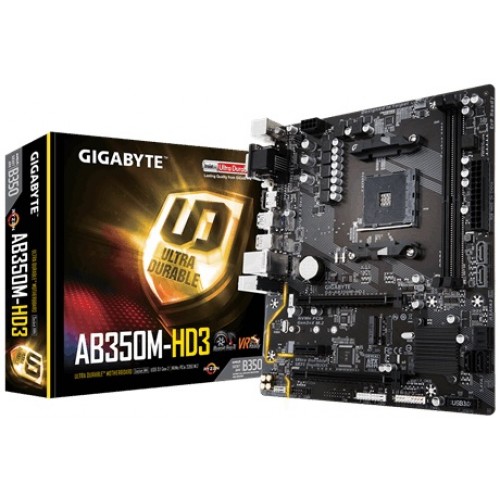

Gigabyte AB350M HD3 AMD Motherboard

৳ 7,760.00

Out of stock

Specification:

Basic Information
Supported CPU AMD Ryzen™ processor
AMD 7th Generation A-series/ Athlon™ processor
Chipset AMD B350
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Graphics Slot Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
* Actual support may vary by CPU.
M.2 Socket 1 x M.2 Socket 3 connector
Memory
Type Dual channel memory architecture
Slots 2 x DDR4 DIMM sockets
Supported Memory Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
* Support for higher than DDR4 2667 MHz may vary by CPU.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 32 GB
Graphics
Integrated Graphics Integrated Graphics Processor:
Supported Graphics 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
* Support for HDMI 1.4 version.
Max Shared Memory 2 GB
Connector & Ports
HDMI 1 x HDMI port
USB (s) 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4*/x2 SSD support)
* Actual support may vary by CPU.
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty 03 years

Description :

Gigabyte AB350M HD3 Micro ATX AMD Ryzen th gen motherboard compatible with AMD Ryzen & 7th generation A-series/ Athlon processors. This exclusive board also supports dual channel DDR4 maximum 32GB memory with the capability of ultra-fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support. Regarding the graphics, it will support integrated Intel HD Graphics and up to 2GB shared graphics memory with the resolution of 1920×1200@60 Hz D-Sub & DVI-D port and 4096×2160@24 Hz of HDMI port. This latest motherboard has the facility of 2 USB 3.1 Gen 2 with USB Type-A, GIGABYTE UEFI DualBIOS, Realtek gigabit LAN with cFosSpeed and 2-Way CrossFire multi-graphics support.
