Specification:
| Basic Information | ||
| Supported CPU | AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
|
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
|
| Graphics Slot | No | |
| M.2 Socket | 1 x M.2 Socket 3 connector | |
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 2 x DDR4 DIMM sockets | |
| Supported Memory | Support for DDR4 2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Mamory | 32 GB | |
| Graphics | ||
| Integrated Graphics | Integrated Graphics Processor | |
| Supported Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz 1 x DVI-D port, supporting a maximum resolution of 1920×[email protected] Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz * Support for HDMI 2.0 version and HDCP 2.2. |
|
| Max Shared Memory | 2 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports |
|
| LAN Port (s) | 1 x RJ-45 port | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header |
|
| D-Sub (s) | 1 x D-Sub port | |
| DVI-D (s) | 1 x DVI-D port | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
Description :

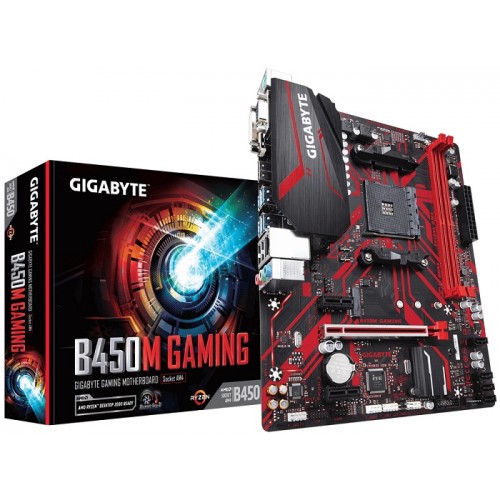

Gigabyte AMD B450M Gaming Motherboard Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors.Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. HDMI, DVI-D, D-sub Ports for Multiple Display.Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support,GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management.RGB Fusion supports RGB LED Strips in 7-Colors.High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting.Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers. APP Center Including EasyTune™ and Cloud Station™ Utilities
