|Supported CPU||Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
|Chipset||Intel® B360 Express Chipset|
|BIOS||2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for Dual BIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|Form Factor||Micro ATX Form Factor; 24.4cm x 18.5cm|
|PCI||1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x PCI slot
|M.2 Socket||1 x M.2 Socket 3 connector|
|Type||2 x DDR4 DIMM sockets supporting|
|Slots||Dual channel memory architecture|
|Supported Memory||Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
|Maximum Mamory||32 GB|
|Integrated Graphics||Integrated Graphics Processor-Intel® HD Graphics support:|
|Supported Graphics||1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz
1 x DVI-D port, supporting a maximum resolution of 1920×[email protected] Hz
* The DVI-D port does not support D-Sub connection by adapter.
|Max Shared Memory||1GB|
|Connector & Ports|
|USB (s)||6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
|LAN Port (s)||Realtek® GbE LAN chip (10/100/1000 Mbit)|
|Supported Storage||1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
|Audio||Realtek® ALC887 codec
High Definition Audio
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
|Internal I/O Ports||1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
|Manufacturing Warranty||03 years|

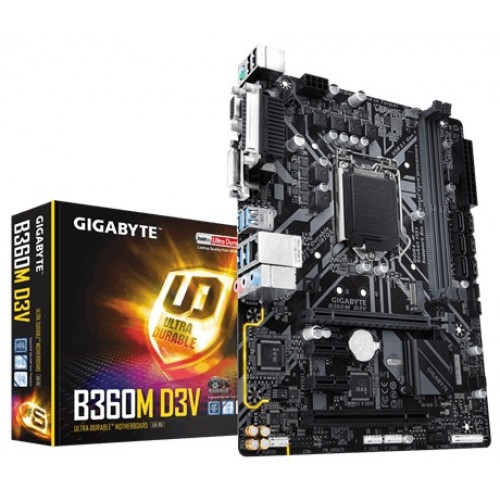

Gigabyte B360M D3V Micro ATX ultra durable hybrid digital PWM design 8th Gen motherboard compatible with i3, i5 & i7 processor supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of ultra-fast M.2 with PCIe Gen3 X4 & SATA interface. Regarding the graphics, it will support integrated Intel HD Graphics and up to 1GB shared graphics memory with the resolution of 1920×[email protected] Hz D-Sub & DVI-D port. This latest motherboard has the facility of GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, DualBIOS and ready for Intel Optane memory & CEC 2019.
