Description
Specification:
| Basic Information | ||
| Supported CPU | Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
|
| Chipset | Intel® B360 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) | |
| Memory | ||
| Type | 2 x DDR4 DIMM | |
| Slots | Dual channel memory architecture | |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Mamory | 32GB | |
| Graphics | ||
| Integrated Graphics | Intel® HD Graphics | |
| Supported Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz |
|
| Max Shared Memory | 1 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | 1 x RJ-45 port | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| D-Sub (s) | 1 x D-Sub port | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Description :

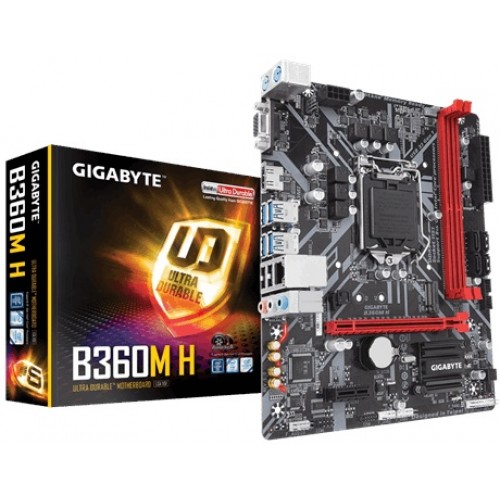

Gigabyte B360M H Intel B360 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready. Supports 9th and 8th Gen Intel® Core™ Processors.Dual Channel Non-ECC Unbuffered DDR4. High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting. Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. CEC 2019 Ready, Save the Power as Easy as One Click. Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP. Anti-Sulfur Resistors Design. Ultra Durable™ 15KV Surge LAN Protection. Intel® Optane™ Memory Ready
