Sale!

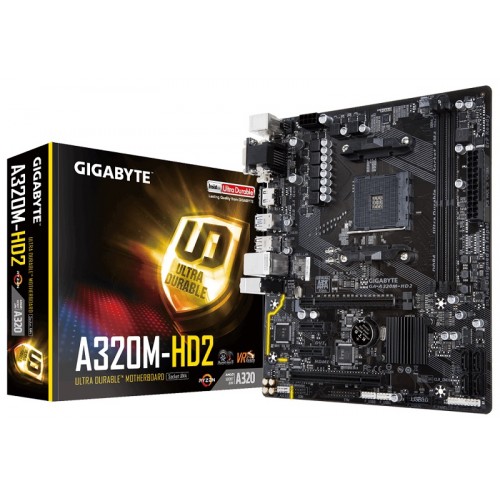

Gigabyte GA-A320M-HD2 AMD Micro ATX Motherboard

Original price was: ৳ 6,200.00.Current price is: ৳ 5,820.00.

Out of stock

Specification:

Basic Information
Supported CPU AMD Ryzen™ processor
AMD 7th Generation A-series/ Athlon™ processor
Chipset AMD A320
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
1 x PCI slot
Graphics Slot D-Sub
DVI-D
HDMI
Memory
Type Dual channel memory architecture
Slots 2 x DDR4 DIMM
Supported Memory Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
* Support for higher than DDR4 2667 MHz may vary by CPU.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 32 GB
Graphics
Integrated Graphics Integrated Graphics Processor
Supported Graphics 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
* Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Max Shared Memory 2 GB
Connector & Ports
HDMI 1 x HDMI port
USB (s) Chipset:
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
3 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI-D
Warranty Information
Manufacturing Warranty 03 years

Description :

Gigabyte GA-A320M-HD2 AMD Micro ATX AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Fast USB 3.1 Gen 2 with USB Type-A connectivity. Considering the graphics, it will support maximum resolution of 4096×2160@24 Hz for HDMI and 1920×1200@60 Hz for D-Sub & DVI-D ports for Multiple Display. This High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting motherboard has Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers and GIGABYTE™ UEFI BIOS.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
