Description

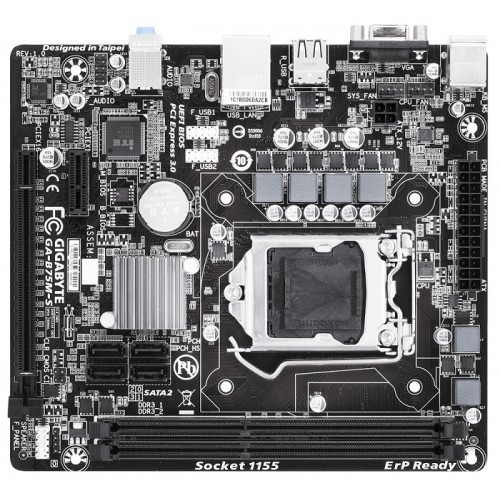

Specification:
| Basic Information | ||
| Supported CPU | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package L3 cache varies with CPU |
|
| Chipset | Intel® B75 Express Chipset | |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 19cm x 17cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility. 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
|
| Memory | ||
| Type | 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory | |
| Slots | Dual channel memory architecture | |
| Supported Memory | Support for DDR3 1600/1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Mamory | To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU. | |
| Graphics | ||
| Integrated Graphics | Integrated Graphics Processor | |
| Supported Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200 | |
| Max Shared Memory | 1 GB | |
| Connector & Ports | ||
| USB (s) | 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 4 x SATA 3Gb/s connectors | |
| Audio | 1 x front panel audio header 3 x audio jacks (Line In, Line Out, Mic In) |
|
| Internal I/O Ports | iTE® I/O Controller Chip | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
Description :
Feature:
- Humidity Protection PCB design
- Electrostatic Protection and Power Failure Protection design
- Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
- Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
- Supports 3rd generation PCI-Express interface
- Enhanced Intel HD Graphics 2000/3000 integrated with the processor
