Description
Specification:
| Basic Information | ||
| Supported CPU | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package | |
| Chipset | Intel H61 Express Chipset | |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a |
|
| Form Factor | Micro ATX Form Factor; 19.0cm x 17.0cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
|
| M.2 Socket | No | |
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x 1.5V DDR3 DIMM sockets | |
| Supported Memory | Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Mamory | 16 GB | |
| Graphics | ||
| Integrated Graphics | Integrated Graphics Processor | |
| Max Shared Memory | 1 GB | |
| Connector & Ports | ||
| HDMI | No | |
| USB (s) | 4 x USB 2.0/1.1 headers | |
| LAN Port (s) | 1 x RJ-45 port | |
| Supported Storage | 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices | |
| Audio | 3 x audio jacks (Line In, Line Out, Mic In) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper |
|
| D-Sub (s) | 1 x D-Sub port | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Description :

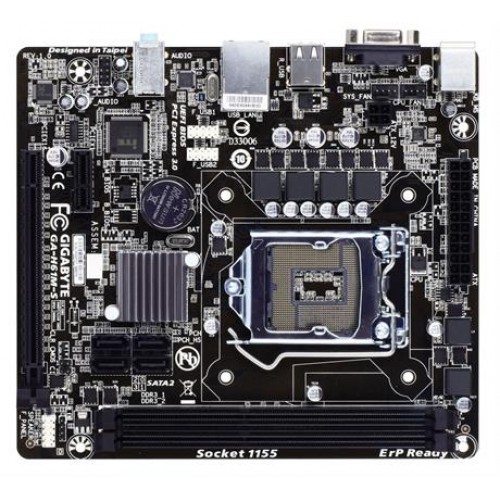

Gigabyte GA-H61M-S DDR3 Micro ATX Motherboard has the compatibility with Supports 3rd Gen Intel 22nm CPUs and 2nd Gen, Intel Core CPUs (LGA1155 socket). This board also Humidity Protection PCB design. Electrostatic Protection and Power Failure Protection design. Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch.Supports 3rd generation PCI-Express interface. Enhanced Intel HD Graphics 2000/3000 integrated with the processor.
