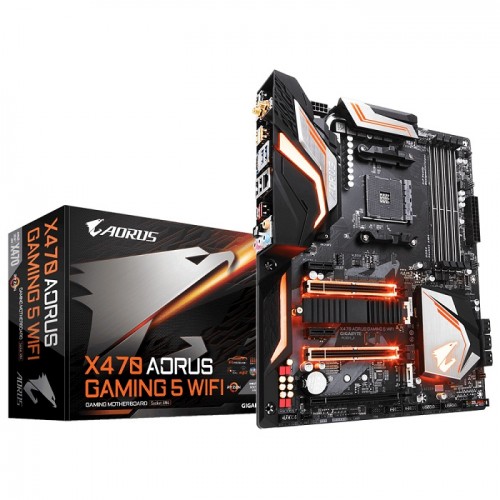

Gigabyte X470 AORUS GAMING 5 WIFI Motherboard

৳ 17,700.00

Out of stock

Specification:

Basic Information
Supported CPU AMD Ryzen™ processor
AMD 7th Generation A-series/Athlon™ processors
Chipset AMD X470
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
Graphics Slot No
M.2 Socket 2 x M.2 Socket 3 connectors
Memory
Type Dual Channel DDR4 Memory Technology
Slots 4 x DDR4 DIMM sockets
Supported Memory Support for DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 64 GB
Graphics
Integrated Graphics Integrated Graphics Processor
Supported Graphics 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz*
* Support for HDMI 2.0 version and HDCP 2.2.*
* Actual support may vary by CPU.
Max Shared Memory 2 GB
Connector & Ports
USB (s) 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
4 x USB 3.1 Gen 1 ports, available through the internal USB headers
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4* /x2 SSD support) (M2A_SOCKET)
* Actual bandwidth may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Audio 5 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x RGB (RGBW) LED strip header
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x temperature sensor header
Warranty Information
Manufacturing Warranty 03 years

Description :

Gigabyte X470 AORUS GAMING 5 WIFI Motherboard Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/ Athlon™ X4 Processors. Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. 8+3 Phase Hybrid Digital PWM Design. 2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design Intel® 802.11ac Wave2 2T2R WIFI & BT 5.ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors.Dual Ultra-Fast M.2 with NVMe PCIe X4 with One Thermal Guard.RGB FUSION with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips.Intel® Ethernet LAN with cFOS Speed Internet Accelerator .USB DAC-UP 2 with Adjustable Voltage.Anti-Sulfur Resistors Design.Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection.CEC 2019 Ready, Save Power with a Simple Click
