Sale!

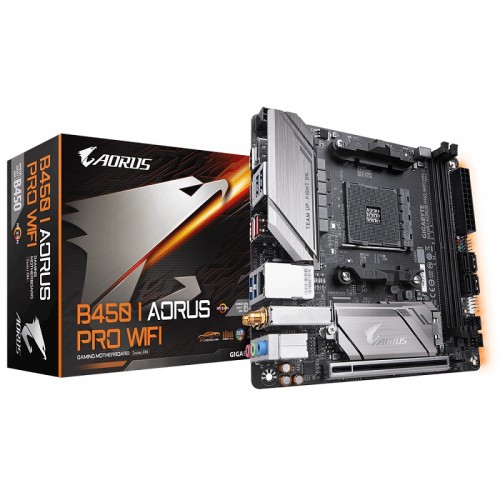

Gigabyte B450 I AORUS PRO WIFI AMD Mini-ITX Motherboard

Original price was: ৳ 13,300.00.Current price is: ৳ 12,500.00.

Out of stock

Specification:

Basic Information
Supported CPU AMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors
AMD Ryzen™ 1st Generation processors
Chipset AMD B450
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16(Note)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
Graphics Slot DisplayPort
HDMI
M.2 Socket 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Memory
Type Dual Channel DDR4 Memory Technology
Slots 2 x DIMM
Supported Memory Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
* ECC function is limited if using an AMD Athlon™ 200-series APU.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 32 GB
Graphics
Integrated Graphics Integrated Graphics Processor
Supported Graphics 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version.
2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)
* One of HDMI function is limited if using an AMD Athlon™ 200-series APU.
Support for up to 3 displays at the same time
Max Shared Memory 16 GB
Connector & Ports
HDMI 2 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports available through the internal USB header
Integrated in the APU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Intel® GbE LAN chip (10/100/1000 Mbit)
Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
** Only support for Windows 10 64-bit.
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek® ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x digital LED strip header
1 x CPU cooler LED strip/RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x speaker header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x chassis intrusion header
Warranty Information
Manufacturing Warranty 03 years

Description :

Gigabyte B450 I AORUS PRO WIFI Mini-ITX AMD AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard and RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips. Considering the graphics, it will support DisplayPort, HDMI*2 Ports for Multiple Display having maximum resolution of 4096×2304@60 Hz for DisplayPort & 4096×2160@60 Hz for HDMI port. This Intel® Dual Band 802.11ac Wave2 WIFI & BT 5 with Microphone with High-end Audio Capacitors motherboard has the facility of Intel® GbE LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP, APP Center Including EasyTune™ and Cloud Station™ Utilities and CEC 2019 Ready for saving Power with a Simple Click.
