Specification:
| Motherboard | ||
| Chipset | AMD B350 | |
| Supported Processors | AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor |
|
| Max Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules * Support for higher than DDR4 2667 MHz may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
| Onboard Video | 1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz 1 x DVI-D port, supporting a maximum resolution of 1920×[email protected] Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 2 GB * Actual support may vary by CPU. |
|
| Onboard Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
|
| Onboard LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Warranty | 3 Years | |
Description :

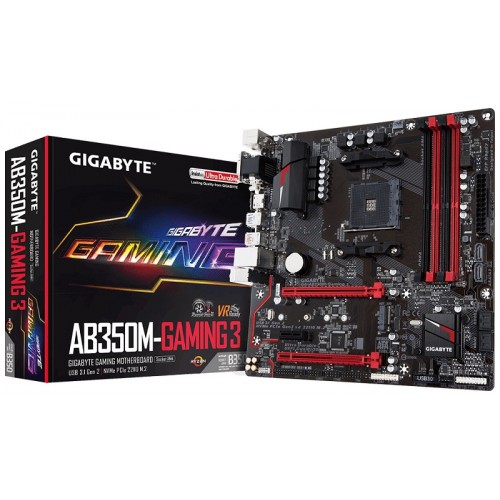

Gigabyte GA-AB350M-Gaming 3 AMD Motherboard
- Supports AMD Ryzen™ & 7th Generation A-series/ Athlon™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Fast 2 USB 3.1 Gen 2 with USB Type-A
- 2-Way CrossFire™ Multi-Graphics Support
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers
- GIGABYTE UEFI DualBIOS™
- APP Center Including EasyTune™ and Cloud Station™ Utilities
03 Years Warranty
